EazyDraw parameters for a line.
Related Information
Target Graphic(s)
Numeric Entry
Units
Scale
Send
|

Line

Line are defined by a start point and end point.

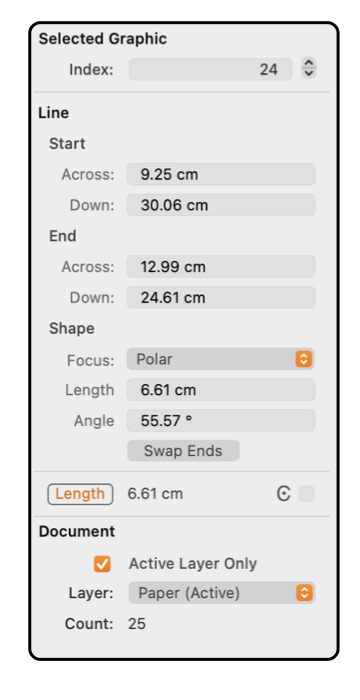

The example to the left shows the contents of the Graphic Details Inspector when a Line is selected. To view this information use the Graphic Details menu command found on the Tools menu of the Main menu.

To show the information for a Line item on a drawing, the Inspector must be open and the Line must be selected. The Line of interest must be the only item selected.

Information for the line is shown in polar and Cartesian coordinates. The line may be modified by changing any of the parameters shown. The coordinates given are the distances from the document origin. The angle is the angle of the line from the start point to the end point of the segment, it is given in degrees.

These lengths are shown in the Units (cm, inches, points, ...) defined for the document on the Scale parameter panel. Each coordinate is the distance from the origin which is defined on the Scale panel and may be adjusted by dragging a Ruler .
